Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: EP2000 power inverter
  • Output Power: 1 - 200KW
  • Output Type: Single
  • Size: 405*305*181mm
  • Weight: 15kg
  • Input Voltage: 110v/120v/220v/230v
  • Output Voltage: 110v/120v/220v/230v
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz/60Hz
  • Output Current: 25A
  • Output wave form: pure sine wave power inverter
  • Charge current: 25A
  • Frequency: low frequency
  • Input voltage range: 150V-280V
  • Transfer time: 10ms
  • Display: LED/LCD screen
  • Application: home/office use
  • Battery type: sealed lead acid battery
  • Warranty: 12 months
  • Surge rate: 3:1

Packaging & Delivery

Packaging Details standard package; 4pc/ctn; gross weight:7-14kgs, ctn measurement: 415*348*205(mm) 900pcs for 20ft container
Delivery Time 15-20days for container order, sample within 4-7days

300w 400w 600w 800w 1000w Rack mount  design pure sine wave power  inverter 12vdc 220vac 50hz





1.Pure sine wave power inverter Feature:





  1. Pure sine-wave output,can be used for different domestic appliance
  2. Superior performance from CPU control technology
  3. AVR design can support stable voltage output
  4. Auto temperature control fan for heat dissipation
  5. Easy to check with inverter status with LED indication that can be upgraded to LCD
  6. Built-in 20-25Ah charger support fast battery recharging





2. power inverter  Applications:



Pure sine wave output can be used with different domestic appliance



TV, refrigerator, fan, air conditioner induction cooker, micro-wave oven etc.



3. power inverter  Advantage :



  • Pure sine-wave output;
  • 25A battery charge current;
  • Superior performance from CPU control technology;
  • Fast Action AC Synchronized Transfer Switch
  • Wide range of input voltage, accurate output, AVR function;
  • Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
  • Easy to check with inverter condition with concise LCD indication. Generator compatibly and external battery connection achievable.
  • Intelligent battery management with protection against over-charged and over-discharged etc.
  • Special charging system design for better protection of battery life.
  • Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
  • With standard on-line structure (three ports) and can be used as UPS.
  • Extremely low return noise and no disturbance to talking quality.


4. Pure sine wave power inverter Specification:

Pure Sine Wave Inverter NB-Y Series Inverter  300w/400w/ 500W/600W/800W/1000W

MODEL

 NY SERIES

500W

600W

800W

1000W

INPUT

Phase

Single

Voltage

115VAC or 220/230/240VAC

Voltage Range

-35% ~ +25% for selected nominal voltage.

Frequency

50Hz / 60Hz (Auto Sensing)

Frequency Range

47Hz ~ 55Hz for 50Hz nominal;
56Hz ~ 65Hz for 60Hz nominal

OUTPUT

Phase

Single

Voltage(Btt. Mode)

115VAC or 230 VAC

Voltage Regulation(Batt. Mode)

±3%

Frequency

50Hz or 60Hz

Frequency Regulation (Batt. Mode)

+/-1 Hz

Output Waveform

Pure sine wave

BATTERY

Battery Type

Sealed ,maintenance-free lead acid

Back up Time

Depends on the external battery

Dc voltage

Dc 12v

Charging current

10A

TRANSFER TIME

Typical

4-6ms

INDICATOR

Led indicator lights

Normal (Green), Warning (Yellow), Fault (Red)

LCD Indicator with Blue /yellow Back Light

 UPS status, I/P&O/P Voltage Frequency,
Load , Battery Voltage  , Temperature, Model

AUDIBLE ALARM

Battery Mode

 Beeping every 4 seconds

Low Battery

Sounding every second

Overload

Sounding every 0.5 second

Fault

Continuous sounding

PROTECTION

Full Protection

Discharge, overcharge, and overload protection

PHYSICAL

Dimension, DXWXH (mm)

375* 130*190 mm

Net Weight (kgs)

7.2

9.1

10.5

13.5

ENVIRONMENT

Operating Environment

0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing)

Noise Level

AC Mode: Less than 40dB
Backup Mode: Less than 45dB






5.Power Inverter Picture:

Pure sine wave power inverter LED display:

Pure sine wave power inverter LCD display

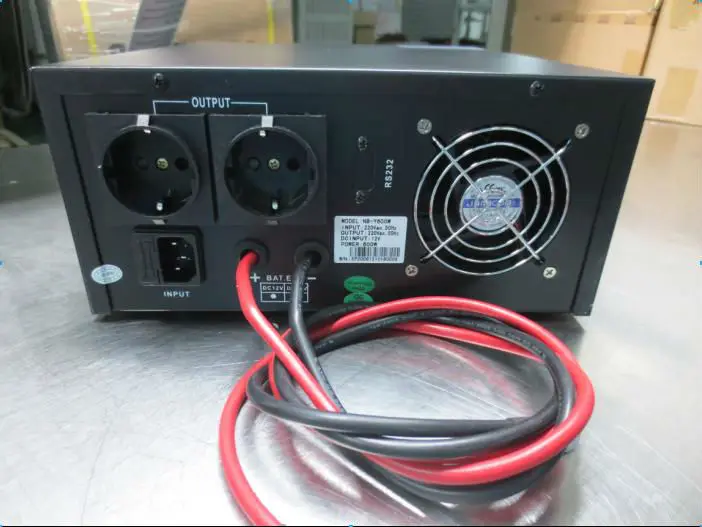

  Pure sine wave power inverter details



Pure sine wave power inverter schuko socket



Pure sine wave power inverter available Socket and Cable:









  Pure sine wave power inverter OEM for our clients



4.Inverter Test Machine:









5.Inverter  Container Transport:







Factory and products certificate







Fair in 2014









300w 400w 500w 600w 800w 1000w Rack mount Mini best design home inverter





Any informaton , please inquiry to know more details about price ,packing ,shipping .



If you have any other questions,please feel free to tell us.We will always on your service!!
