Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: PV2000 solar inverter
  • Output Power: 1 - 200KW
  • Output Type: Single
  • Size: 301*328*132mm
  • Weight: 8-12kg
  • Input Voltage: 110v/120v/220v/230v
  • Output Voltage: 110v/120v/220v/230v
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz/60Hz
  • Output Current: 10A
  • solar inverter: hybrid power inverter
  • Nominal Efficiency: >80%
  • Application: TV,Computer , fan , refrigerator
  • Pass through without Battery: Yes
  • Transfer time: 10ms
  • Operating Temperature: 0°C to 40°C
  • Warranty: 12 months
  • Battery type: Lead acid Battery
  • Frequency: low frequency
  • solar charger: 30A

Packaging & Delivery

Packaging Details cartons or wooden box.Or according to customer's need .

<Must solar >CE Approved 1200W 24V home solar Inverter hybrid inverter with solar charge controller

Features of solar power inverter PV2000 series :

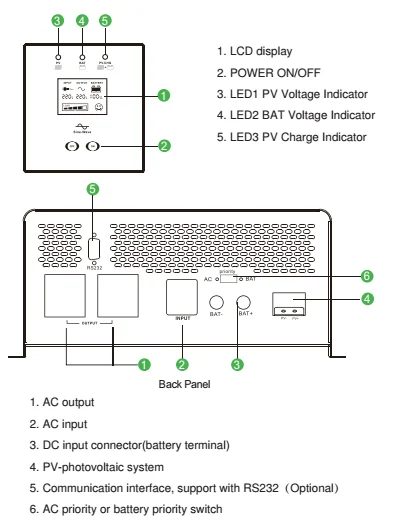

 LCD Display Information:




MODELPV20-500PV20-1200PV20-2000
Default Battery System Voltage12VDC12VDC24VDC
INVERTER OUTPUTRated Power500VA/300W1200VA/700W2000VA/1200W
Surge Rating (20ms)900W2100W3600W
WaveformPure sine wave
Nominal Output Voltage RMS220VAC(+/-10% RMS)
Output Frequency50Hz/60Hz +/-1 Hz
Inverter Efficiency(Peak)>80%
Line Mode Efficiency>95%
Typical Transfer TimeTypical 2~6ms 10ms(max)
AC INPUTVoltage220VAC
Selectable Voltage Range 140~275VAC(For Personal Computers)
Frequency Range50HZ/60HZ (Auto sensing 47~65Hz)
BATTERYMinimum Start Voltage10.5VDC21.0VDC
Low Battery Slarm10.5VDC+/-0.3V 21.0VDC+/-0.6V
Low Battery Cutoff10.0VDC+/-0.3V 20.0VDC+/-0.6V
High Voltage Alarm15.5VDC+/-0.3V 31.0VDC+/-0.6V
High Battery Voltage Recover15.0VDC+/-0.3V 30.0VDC+/-0.6V
CHARGERCharger Voltage14.0±0.2V28.0V±0.2V
Overcharge Protection S.D.15.5VDC31.0VDC
Maximum Charge Current10A MAX
BYPASS & PROTECTIONInput Voltage WaveformSine wave
Nominal Input Frequency50Hz or 60Hz
Low Freq Trip47+/-0.3Hz for 50Hz; 57+/-0.3Hz for 60Hz
High Freq Trip55+/-0.3Hz for 50Hz; 65+/-0.3Hz for 60Hz
Overload Protection (SMPS Load)Load>110%  R Load fault after 60S
Output Short Circuit ProtectionAC FUSE  Protection
Bypass Breaker Rating10A
Max Bypass Current10Amp
SOLAR CHARGERMaximum PV Charge Current30A
DC Voltage12V/24V atuo work
Maximum PV Array Power150W*3 solar panels150W*4 solar panels
MPPT Range @ Operating Voltage16~55VDC
Maximum PV Array Open Circuit Voltage55VDC
Maximum Efficiency>95%
Standby Power Consumption<2W
MECHANICAL SPECIFICATIONSMountingWall mount
Dimensions (W*H*D)301*328*132mm
Net Weight (Solar CHG) kg6.86KG8.92KG10.25KG
Shipping Dimensions(W*H*D)325*391*187mm
Shipping Weight (Solar CHG) kg7.54KG9.6KG10.93KG
OTHEROperating   Environment 0°C~40°C 0~90% relative humidity (non-condensing)
Noise  Level Less than 60dB
DisplayLED+LCD
Standard Warranty1 year









PV2000 Power solar inverter solar system connection :

Packaging & Shipping



Solar Inverter Package: Client's OEM Package Welcomed
